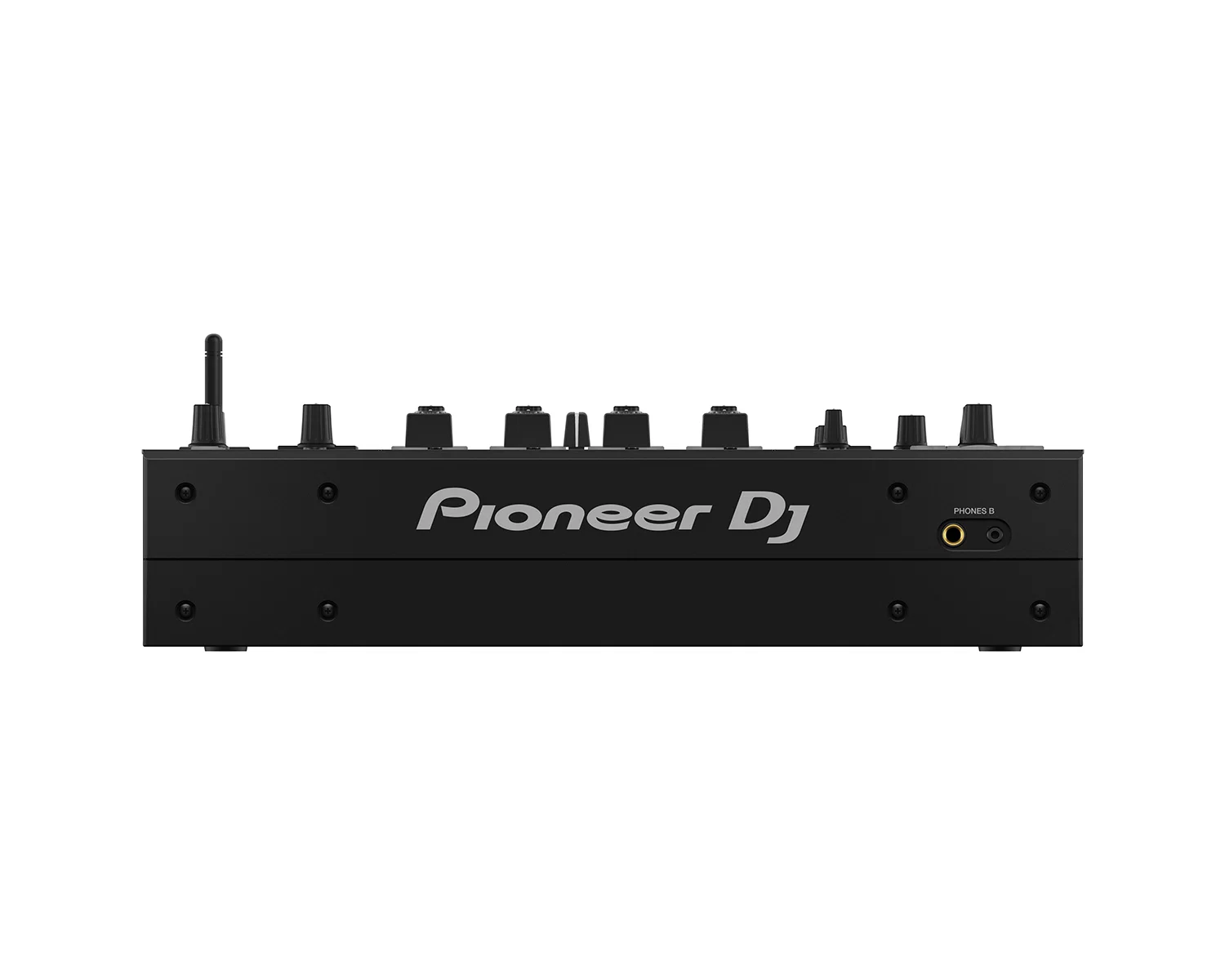

The Pioneer DJ DJM-A9 is a 4-channel high-end professional digital DJ / club mixer. Flagship Sound Color FX with Centre Lock, newly advanced Beat FX with a dedicated screen display, expanded connectivity, an enhanced microphone section and Bluetooth 5.0 audio input. Dry hire from DJ equipment hire at STLS.
Specs At A Glance
| Type | Professional 4-channel digital DJ / club mixer |
|---|---|
| Brand | Pioneer DJ |
| Channels | 4 |
| Sound Color FX | Space, Dub Echo, Sweep, Noise, Crush, Filter (with Centre Lock) |
| Beat FX | Delay, Echo, Ping Pong, Spiral, Helix, Reverb, Flanger, Phaser, Filter, Triplet Filter, Trans, Roll, Triplet Roll, Mobius |
| Screen Display | Yes, for Beat FX |
| Bluetooth | Bluetooth 5.0 audio input, approx 10m range unobstructed |

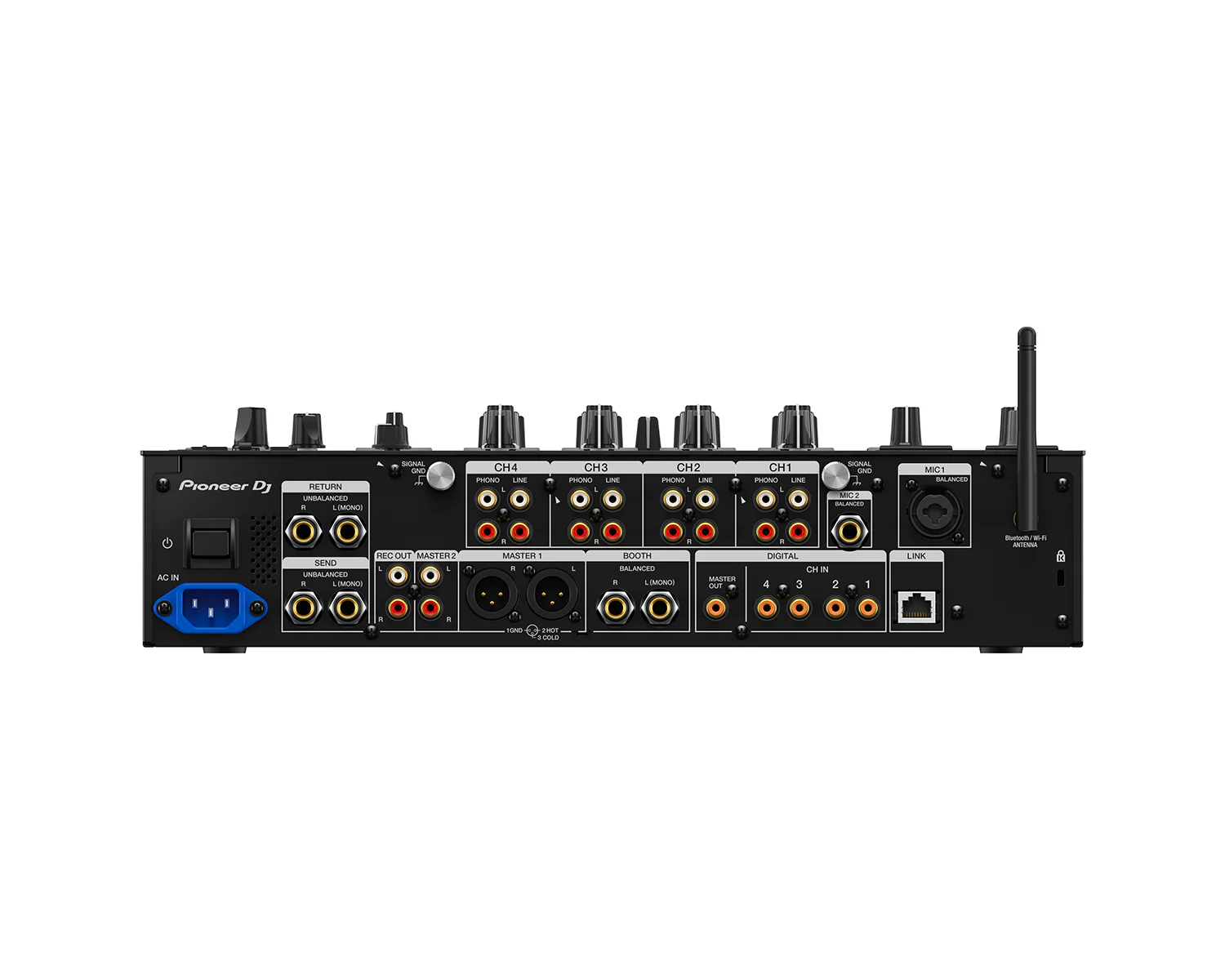

| Inputs | DIGITAL x 4 (coaxial), LINE x 4 (RCA), PHONO x 4 (RCA), MIC x 2 (XLR & 1/4″ TRS x 1, 1/4″ TRS x 1) |
| Outputs | MASTER x 2 (XLR + RCA), BOOTH x 1 (1/4″ TRS), REC x 1 (RCA), DIGITAL MASTER x 1 (coaxial), PHONES x 4 (2x 1/4″, 2x 3.5mm) |
| Send / Return | SEND (1/4″ TS) x 1, RETURN (1/4″ TS) x 1 |
| USB | USB Type-A x 1, USB Type-B / Type-C x 2 |
| Network | LAN 100BASE-TX x 1 (PRO DJ LINK) |
| Frequency Response | 20 Hz – 40 kHz (LINE) |
| S/N Ratio | 114 dB (USB, Digital IN); 88 dB (PHONO); 105 dB (LINE); 79 dB (MIC) |
| THD | 0.005% (LINE-MASTER1) |
| Compatible Software | rekordbox, Serato DJ Pro, ShowKontrol, PRO DJ LINK Bridge |
| Power | 46W consumption |
| Dimensions | 407.4 x 458.3 x 107.9 mm (140.7 mm with antenna) |
| Weight | 10.2 kg |
What’s Included In Dry Hire
Each DJM-A9 hire comes with mains lead and dust cover. PAT certificate on request. Add RCA/XLR patch cables, headphones, CDJs and flight case to your order.
Key Features
- Stunningly clear sound quality with premium components throughout
- Evolved playability with refined channel EQ and filter response
- 6 Sound Color FX (Space, Dub Echo, Sweep, Noise, Crush, Filter) with Centre Lock
- 14 Beat FX including new Mobius, Triplet Filter and Triplet Roll effects
- Dedicated screen display for Beat FX parameters
- Bluetooth 5.0 audio input for wireless music playback (about 10m range)
- Enhanced mic section with dual mic inputs, plus one on XLR / TRS combo
- Dual independent headphone outputs (2x 1/4″ and 2x 3.5mm mini)
- Independent Booth EQ for tuning the DJ booth monitor
- SEND / RETURN loop for external outboard FX processing
- Stagehand app support with built-in Sound Check function
- DJM-REC app support for reliable long-form recording
- PRO DJ LINK, MIDI Control (fully assignable), DVS Control
- P-LOCK Fader Caps prevent fader caps popping off in the club
- rekordbox and Serato DJ Pro compatibility (Serato needs licence)
- ShowKontrol and PRO DJ LINK Bridge support for video and lighting integration
Common Uses
Nightclub main-room booths, mobile DJ rigs, wedding DJ setups, festival stages, residencies, live venues, corporate events with DJ entertainment and event streams. The DJM-A9 is the flagship 4-channel club mixer for both installed clubs and touring booth builds.
DJM-A9 vs DJM-V10
The DJM-A9 is the flagship 4-channel club mixer, refining the DJM-900NXS2 lineage with a screen for Beat FX, Bluetooth input and enhanced sound quality. The DJM-V10 is the 6-channel bigger sibling with 4-band EQ, six full channels and studio-style routing. Pick the A9 for club and mobile setups where 4 channels is standard; step up to the V10 for creative multi-source or house residency work.
Similar Or Alternative Kit
Pair with the AlphaTheta CDJ-3000X or CDJ-3000 for a complete pro DJ booth. See our DJ equipment range for other Pioneer DJ mixers and controllers.
Frequently Asked Questions
How many channels does the DJM-A9 have?
4 channels. Classic Pioneer DJ 4-channel club layout.
Does the DJM-A9 have Bluetooth?
Yes. Bluetooth 5.0 audio input with about 10m unobstructed range. Handy for background music or wireless input.
What Sound Color FX does the DJM-A9 have?
Six Sound Color FX: Space, Dub Echo, Sweep, Noise, Crush and Filter, all with the new Centre Lock feature.
What Beat FX does the DJM-A9 have?
Fourteen: Delay, Echo, Ping Pong, Spiral, Helix, Reverb, Flanger, Phaser, Filter, Triplet Filter, Trans, Roll, Triplet Roll and Mobius. Each with dedicated screen display.
Does the DJM-A9 work with rekordbox and Serato?
Yes. Native rekordbox integration and Serato DJ Pro compatible (Serato requires a separate licence). Plus ShowKontrol and PRO DJ LINK Bridge for video/lighting.
How many mic inputs does it have?
Two mic inputs. Mic 1 is XLR combo (XLR or 1/4″ TRS), Mic 2 is 1/4″ TRS.
Does the DJM-A9 have send/return for external FX?
Yes. 1x SEND and 1x RETURN on 1/4″ TS jacks for external outboard FX processing.
What are the master outputs?
Two master outputs: XLR and RCA. Plus a 1/4″ TRS booth output, RCA rec out and coaxial digital master.
How heavy is the DJM-A9?
10.2 kg. Dimensions 407.4 x 458.3 x 107.9 mm (140.7 mm with the Bluetooth antenna up).
Can I collect from your depot?
Yes. Surrey depot collection Monday to Friday, or we’ll deliver to your venue.
